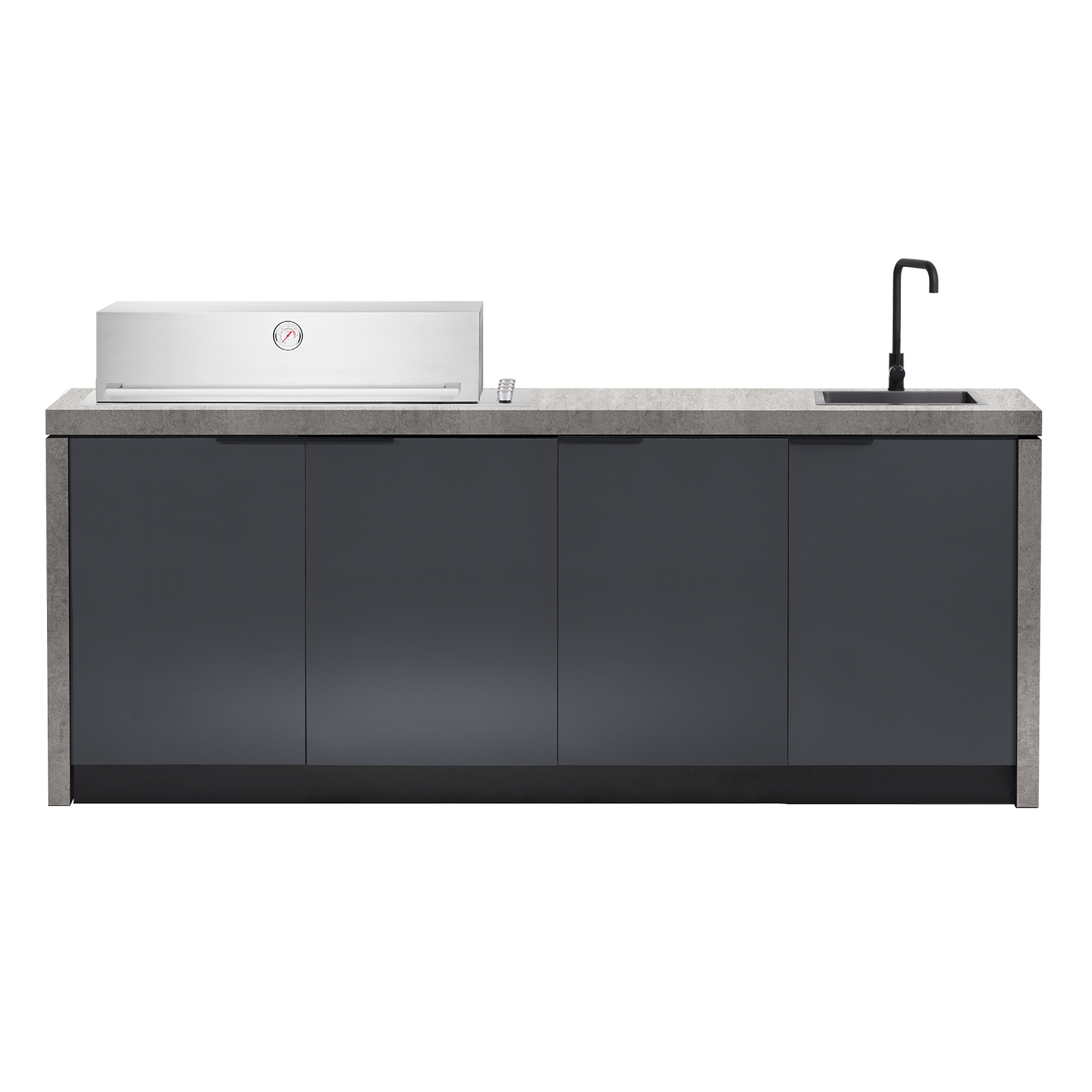

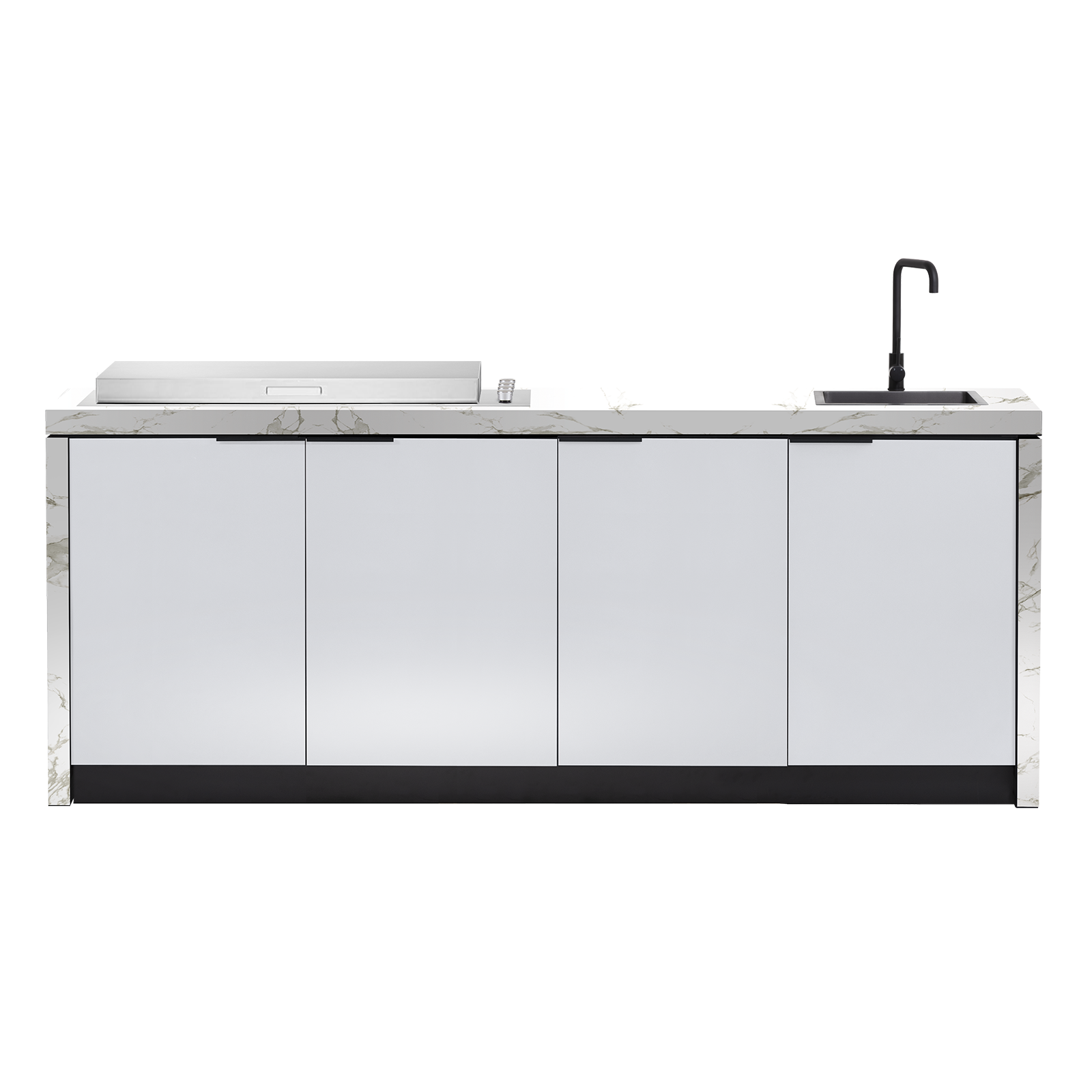

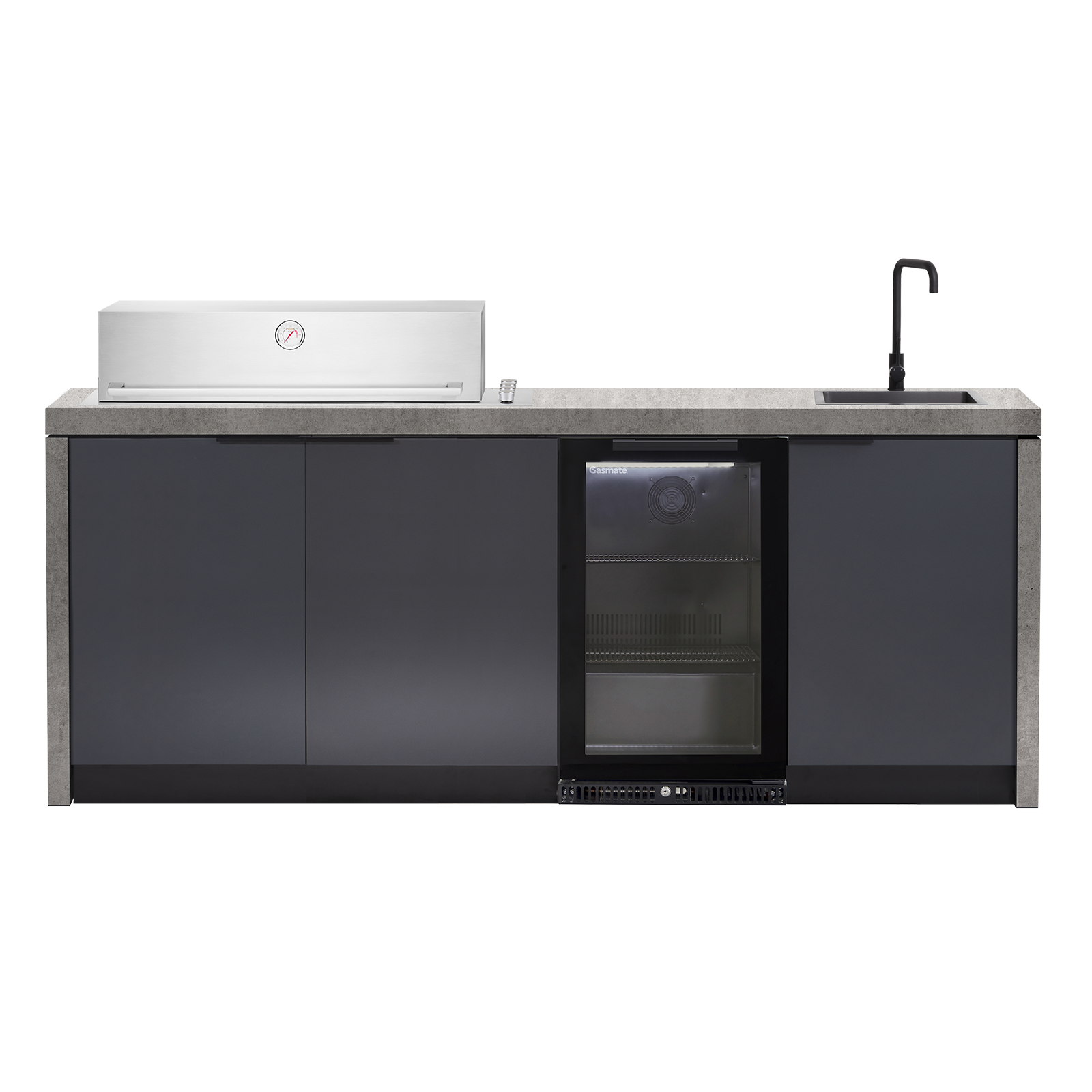

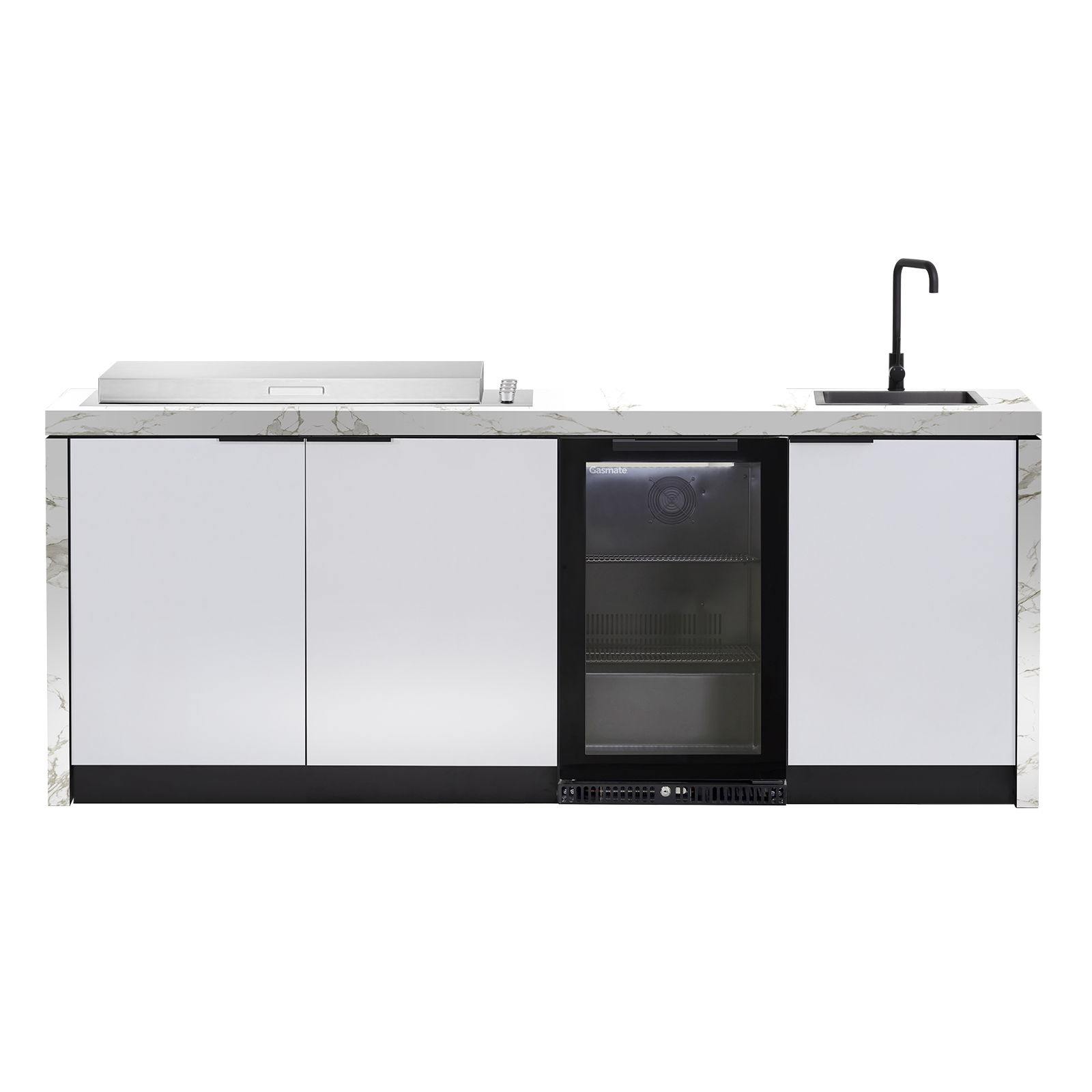

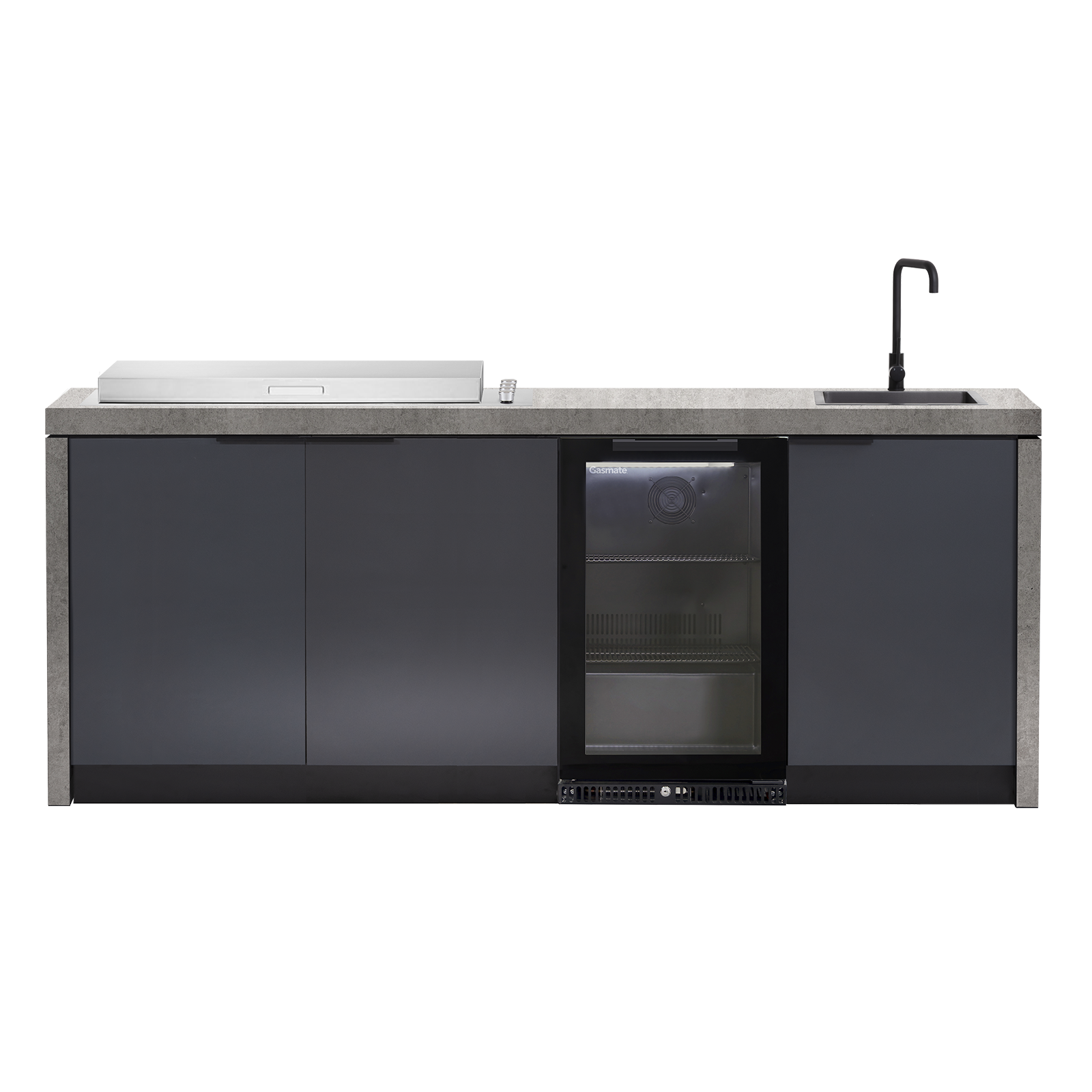

Cabinex Minimal Outdoor Kitchen with BeefEater Signature Proline BBQ

Sleek and sophisticated; the Cabinex Minimal Outdoor Kitchen is raring to be the centre point of your alfresco space. Meticulously designed to seamlessly integrate the BeefEater Proline 6-Burner BBQ, this outdoor kitchen is the perfect combination of functionality and elegance.

Featuring the BeefEater Signature Proline 6-Burner Built-In BBQ, with the option of a Roasting Hood or Flat Lid, this weatherproof outdoor kitchen is suitable for any alfresco space. Complete with a sink and tap and your choice of additional storage or single-door fridge, the Cabinex Minimal Kitchen caters to all kinds of areas.

Constructed from completely waterproof Weathertek Cabinetry and Porcelain, available in a range of different colours, this custom outdoor kitchen is ready to be installed anywhere.

*Installation available for Melbourne Metro, Mornington and Bellarine Peninsulas, as well as Brisbane Metro, Sunshine Coast and Gold Coast at an additional cost.

Features

• High quality, weatherproof cabinetry and benchtop
• Stylish Porcelain Benchtop with shadow-line waterfall ends
• Adjustable feet to allow for kitchen to be level
• Ample storage space
• BBQ approved For Use In Enclosed Entertaining & Dining Spaces in accordance with the manufacturer's installation manual
• Designed to be placed directly up against a wall
• Available in multiple colours*
• Layout is reversible - sink at left end, bbq to the right side

  *Additional colour combinations are available upon request eg Black benchtop with White doors.

Specifications

Cabinetry Dimensions (LxDmm): 2385 x 730mm
Benchtop Height (approx.): >940mm (adjustable)
Benchtop Edgework: 60mm
Rear Cavity Depth (For Services): 30mm
Fridge Size (if applicable): 97L
Door Finish: Matte
BBQ Finish: Stainless Steel

Materials-
Frame: Cabinex Anodized Aluminium Frame
Carcass: WeatherTek PVC
Doors: WeatherTek Compact Laminate
Benchtop: Porcelain

Appliances (if applicable)-
BBQ: BeefEater Signature Proline 6-Burner BBQ
Hooded BBQ SKU: BSH158SANG
Flat Lid BBQ SKU: BSL158SANG
Overall Hooded BBQ Dimensions (LxDxHmm): 1046x540x177mm
Overall Flat Lid BBQ Dimensions (LxDxHmm):
Burners: 6x stainless steel burners
Total Output 71 MJ/h
Hotplate: 1x Cast Iron Hotplate
Grills: 2x Cast Iron Grills
Gas connection set up: Natural Gas (NG Hose not Included)
LPG Conversion Kit: Included
Flame Failure Device: Included

Fridge: Gasmate Premium 1-Door 97L Glass Door Bar Fridge with Black Interior
SKU: BFR1088
Dimensions (LxDxHmm): 500 x 550 x 840mm
Capacity: 97L
External Body Finish: Brushed Stainless Steel
Internal Body Finish: Black anti-bacterial finish
Door: Triple glazed heated glass door (lockable)
Energy Consumption: 2.4kw.h/24h
Noise Level: 45db(A)
IP Rating: IP24
Rated Voltage: 220-240V AC
Net Weight: 38kg

Assembly Required
Cabinetry: Sent as flatpack - Full assembly required
Holesaw Required
*Assembly available for Melbourne Metro zones for an additional price upon request

Warranty

Cabinetry: Limited 15 Year Warranty
BBQ: Limited 2 Year BeefEater Warranty
Fridge (If Applicable): Limited 5 Year Gasmate Warranty
