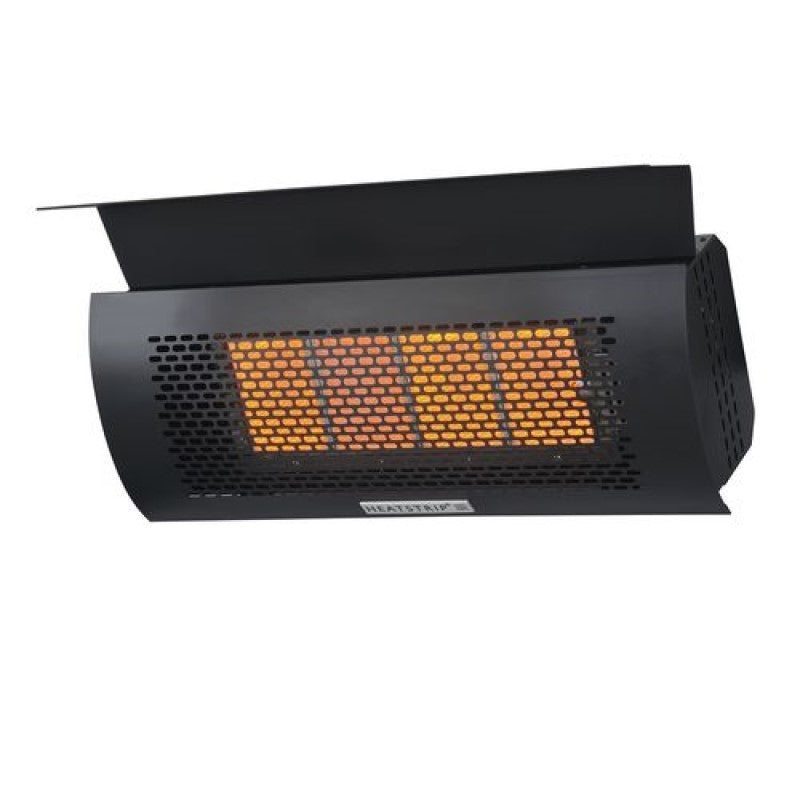

Heatstrip Wall Mounted Gas Heater

The new and upgraded Heatstrip Wall Mounted Gas heaters are a stylish addition to any outdoor area, available in Natural Gas and LPG options. World-class design aesthetics, heat output and performance, for both residential and commercial applications.

Features

• 4 Tile commercial grade ceramic burner with a high 34MJ/hr output.

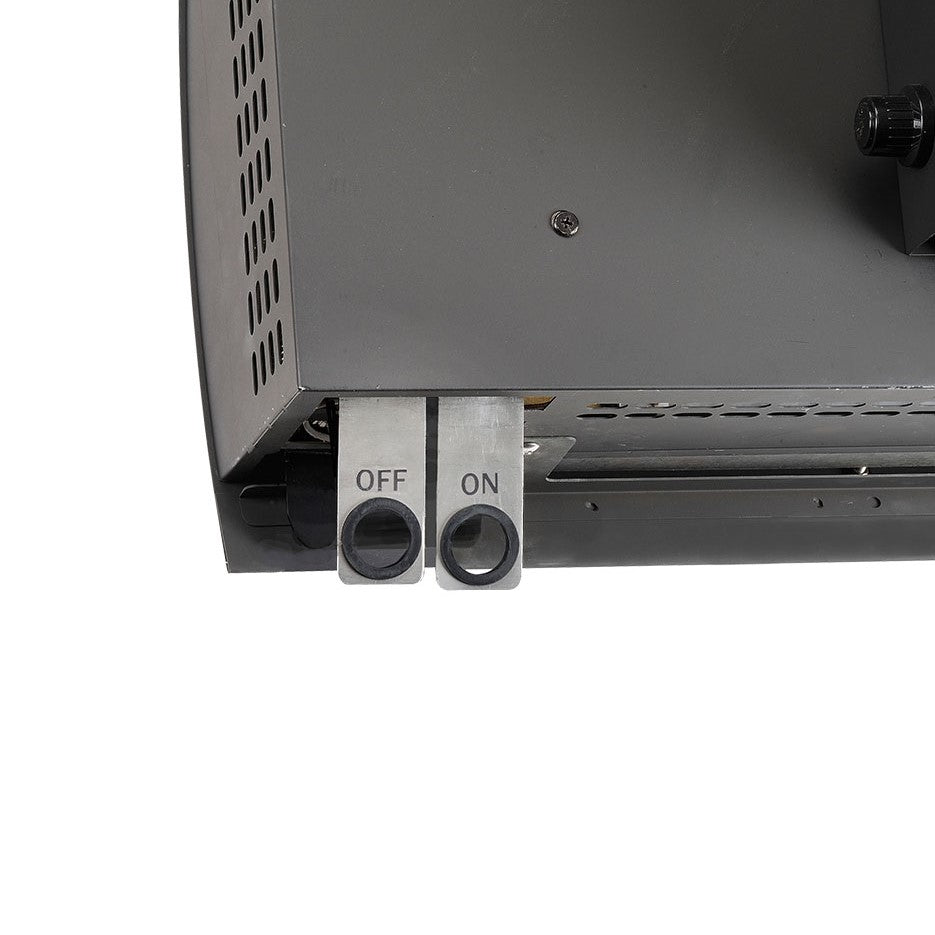

• Electronic finger pull ignition and flame failure device
• World-class wind protection rating at 16km/hr
• Protective grille and reflector included as standard to guarantee safe operation
• Reflector design ensures that only a minimum of 500mm overhead clearance is required

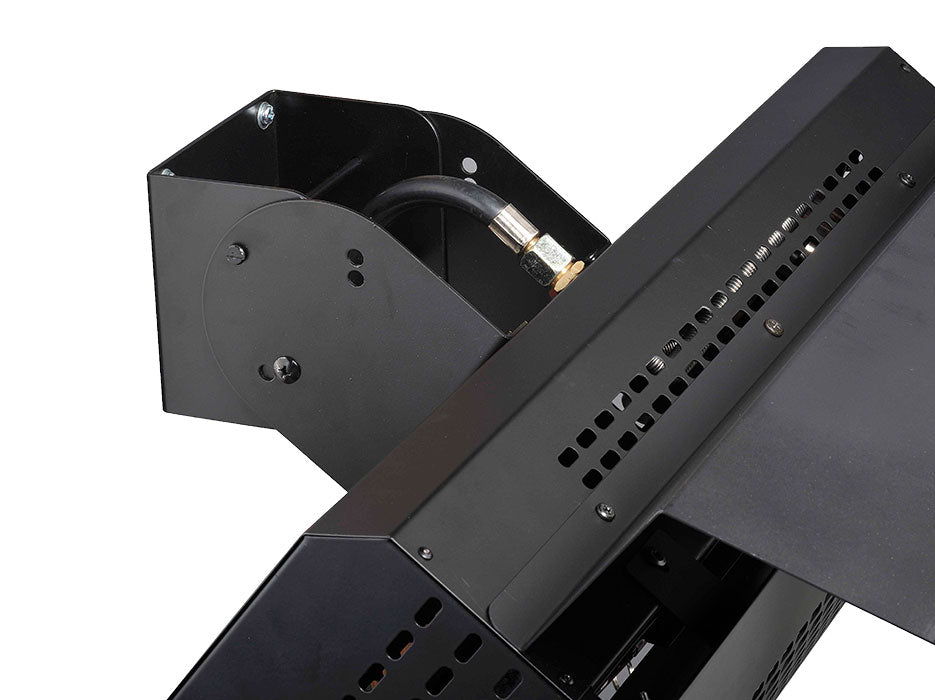

• Robust wall mounting bracket allows for multiple mounting angles.
• Optional Heatshield (TGHAC-003) available for an even lower minimum clearance of 300mm, if required.
• Ceiling Mount extension pole (TGHAC-004) available as an optional accessory
• 2-year residential warranty and 1-year commercial warranty

Specifications

SKU's:
NG: TGH34WN-2
Dimensions (LxWxHmm): 650 x 190 x 380mm
Heat Tiles: 4 x Commercial Grade
Heat Output: 34MH/Hr
Running Cost: Aprox $0.68/Hr (This may vary)
Heating Area: 16m²
Materials: Stainless Steel Head (420 grade), Powder Coated Mild Steel Stand.



Mounting Height:

- Minimum Recommended mounting height: 2.0M
- Maximum mounting height: 3.5M outdoors

For the standard heat reflector supplied with the heater, a 500mm overhead clearance is required. For low clearance mounting, please use the optional Heatshield (TGHAC-003) which provides for a 300mm overhead clearance.

For high ceilings or mounting flexibility, the optional Ceiling Mount Extension Pole (TGHAC-004) can be used to reduce the height of the heater by 500mmor for mounting from the ceiling when a wall is not available in the immediate area. The diagram above illustrates the radiant footprint of 5m.
